Perkins is one of the world’s leading diesel engine manufacturers since 1932. Till now, it has totally manufactured 15 million engines, with an annual production of 300,000 units. It has a world service network that covers over 4,000 distributors and service companies.
Established in 2007, Perkins (Wuxi) Factory is the only production base of Perkins engine in China. Presently, it can manufacture 400 series, 1104 series and 1106 series Perkins engine.





Advantages of Perkins Engine
1. Four stroke, water cooled, exhaust turbo charger and intercooler;
2. Equipped with a separate fuel injector, more economical fuel consumption;
3. Unique piston and cylinder design;
4. Excellent exhaust and cooling system;
5. Optimized emissions to meet Euro emission standards and U.S. EPA Standards;
6. 2000 series with electronic fuel injection;
7. 4000 series with electronic governor system;
8. Power range: 7-2000kW.

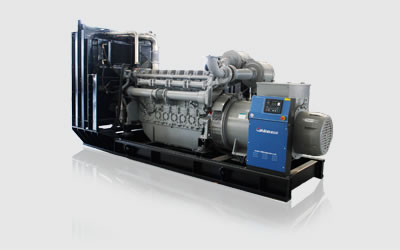

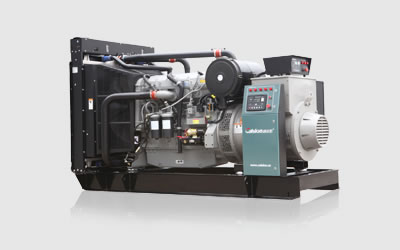

Standard Configuration of Perkins Open Type Generator Set
1. Perkins engine;
2. Leroy-Somer alternator (Marathon, Stamford and Engga alternator for option);
3. Power below 200kva is equipped with Deep Sea 3110 controller, power above 200kva is equipped with Deep Sea DSE7320 control panel (DEFI and ComAp controller for option);
4. Delixi circuit breaker (CHINT and ABB breaker for option);
5. Anti-vibration mounts;
6. Base frame and fuel tank for option;
7. Free lead-acid battery and battery charger;
8. Industrial silencer and flexible exhaust hose, exhaust pipe connector, flange, bellows (residential silencer for option);
9. One Perkins diesel genset / engine / alternator operational manual, panel wiring diagram and factory test certificate;
10. These industrial generator sets are certified by CE, ISO9001, ISO 14001 and OHSAS 18001.


Remarks
1. Model No. with E is applicable for standby power, with the operating time not exceeding 500 hours per year. No overload is permitted.
2. Model No. without E is applicable for prime power with unlimited running hours per year. Variable load not exceed 75% per 24 hours, 10% overload power is allowed for 1 hour within 12 hours.
3. Data shown above in accordance with ISO conditions of 100Pa barometric pressure, 1000m altitude and 40°C ambient temperature.

4. Voltage based on 50HZ 400V, more voltage can choose from.



Remarks
1. Model No. with E is applicable for standby power, with the operating time not exceeding 500 hours per year. No overload is permitted.
2. Model No. without E is applicable for prime power with unlimited running hours per year. Variable load not exceed 75% per 24 hours, 10% overload power is allowed for 1 hour within 12 hours.
3. Data shown above in accordance with ISO conditions of 100Pa barometric pressure, 1000m altitude and 40°C ambient temperature.

4. Voltage based on 60HZ 480V, more voltage can choose from.
